15.6 Inch TFT LCD Display | 1920x1080 FHD eDP 300nits Display
15.6-inch IPS TFT LCD with 1920×1080 Full HD resolution and 30-pin eDP interface. Suitable for POS terminals, laptops and commercial display applications.
Product Details
Product Overview
SYM156NWS1.0 is a 15.6inch FHD TFT Liquid Crystal Display opencell without LED Backlight unit and 30 PINS eDP interface.This module supports 1920×1080 FHD mode and can display 16.7M colors.
| Key Features • 15.6-inch Full HD Display – 1920×1080 resolution with 16:9 widescreen format • IPS Panel Technology – Provides wide viewing angles and stable image quality • eDP Interface – Common interface for modern display systems • Slim and Lightweight Design – Suitable for compact devices • 60Hz Refresh Rate – Smooth display performance for daily applications • Commercial Display Solution – Suitable for POS and embedded terminals | Applications • POS Terminals • Retail Equipment • All-in-One Computers • Commercial Terminals • Notebook Displays • Smart Retail Systems • Office Equipment • Embedded Display Devices |
Detailed Specifications
| Brand | Assembled Display |
| Model | SYM156NWS1.0 |
| Cell Brand | COST |
| Size | 15.6inch |
| Resolution | 1920 × 1080 (FHD) |
| WH | 16:9 |
| Active Area | 344.16 (H) × 193.59(V) mm |
| Outline Size | 350.76×214.5 × 2.9 (Typ.) mm |
| Brightness | 300 cd/m2(Typ.) |
| Contrast Ratio | 1000:1(Typ.) |
| Viewing Angle | 89/89/89/89 |
| Display Colors | 16.7M |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -10 ~ 60 °C |
| Backlight Type | Lifetime 15,000 hrs |
| Refresh Rate | 60Hz |
| Interface | eDP 1.2 |

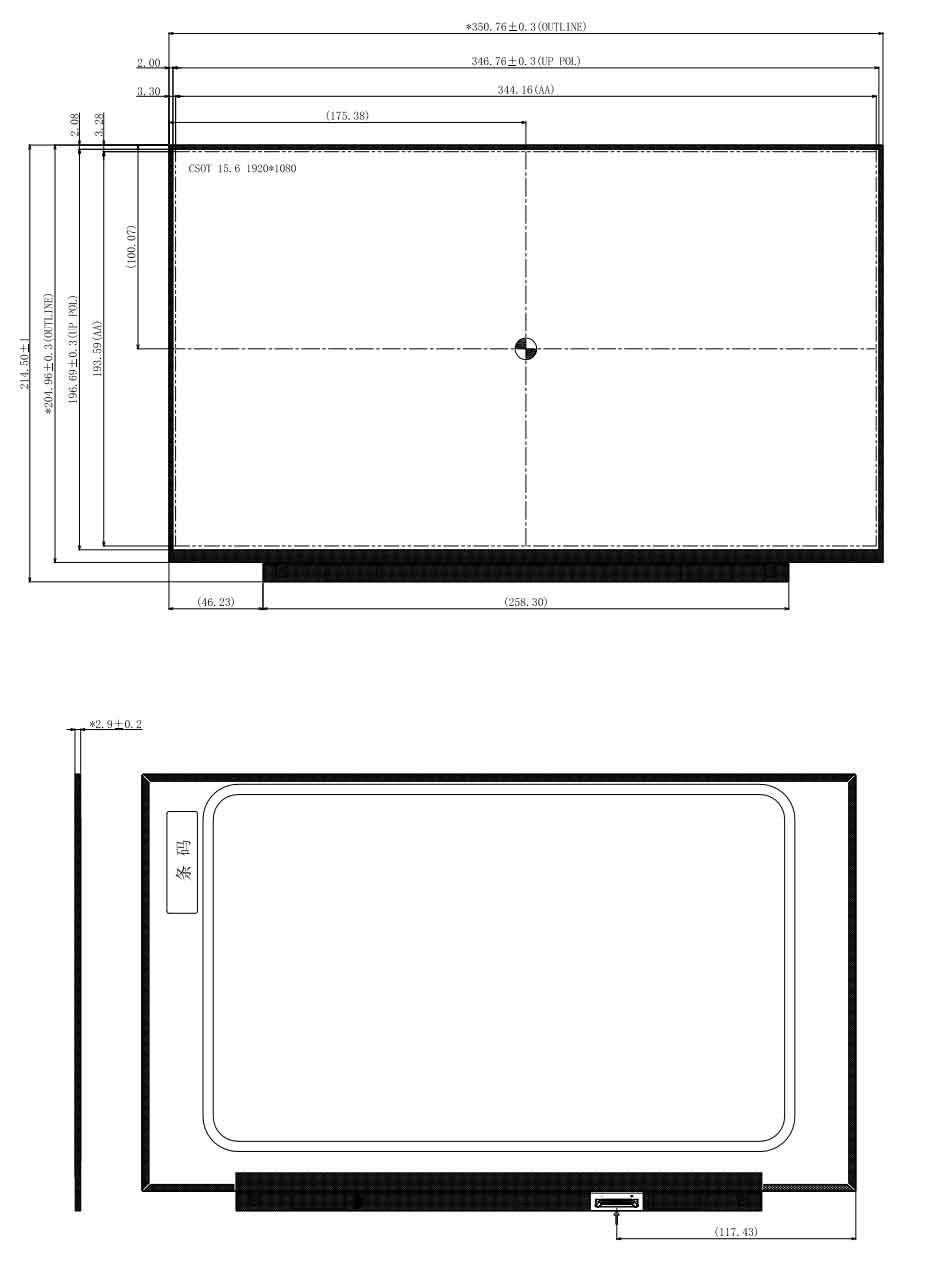

OUTLINE DRAWING
FAQ
Q1: Is this LCD module compatible with CSOT MNF601BS1-1?
Yes. This LCD module is designed as a compatible replacement for CSOT MNF601BS1-1.
Q2: Is the LCD cell from CSOT?
Yes. The LCD cell is sourced from CSOT.
Q3: Can it directly replace MNF601BS1-1?
It is designed for replacement applications. Please confirm the interface, mechanical dimensions and mounting requirements before use.
Q4: What applications can this LCD module be used for?
It is suitable for POS terminals, commercial displays, all-in-one systems and embedded display equipment.
Q5: What interface does this LCD module use?
It uses a 30-pin eDP interface.
Q6: What warranty do you provide?
We provide a 12-month warranty for the LCD module.
