For customers currently using the IVO M101GWN9 R2, supply availability has become an important concern.
Is M101GWN9 R2 Discontinued?
IVO has not officially announced the M101GWN9 R2 as EOL (End of Life).
However, this model has not been produced for a long time and there is currently no regular factory stock available. For a new production order, the current MOQ is approximately 3,000 pcs.
For projects with lower volume requirements, restarting production may therefore not be practical.
Is There a 1:1 IVO Replacement?
Currently, IVO does not have a direct 1:1 replacement for the M101GWN9 R2.

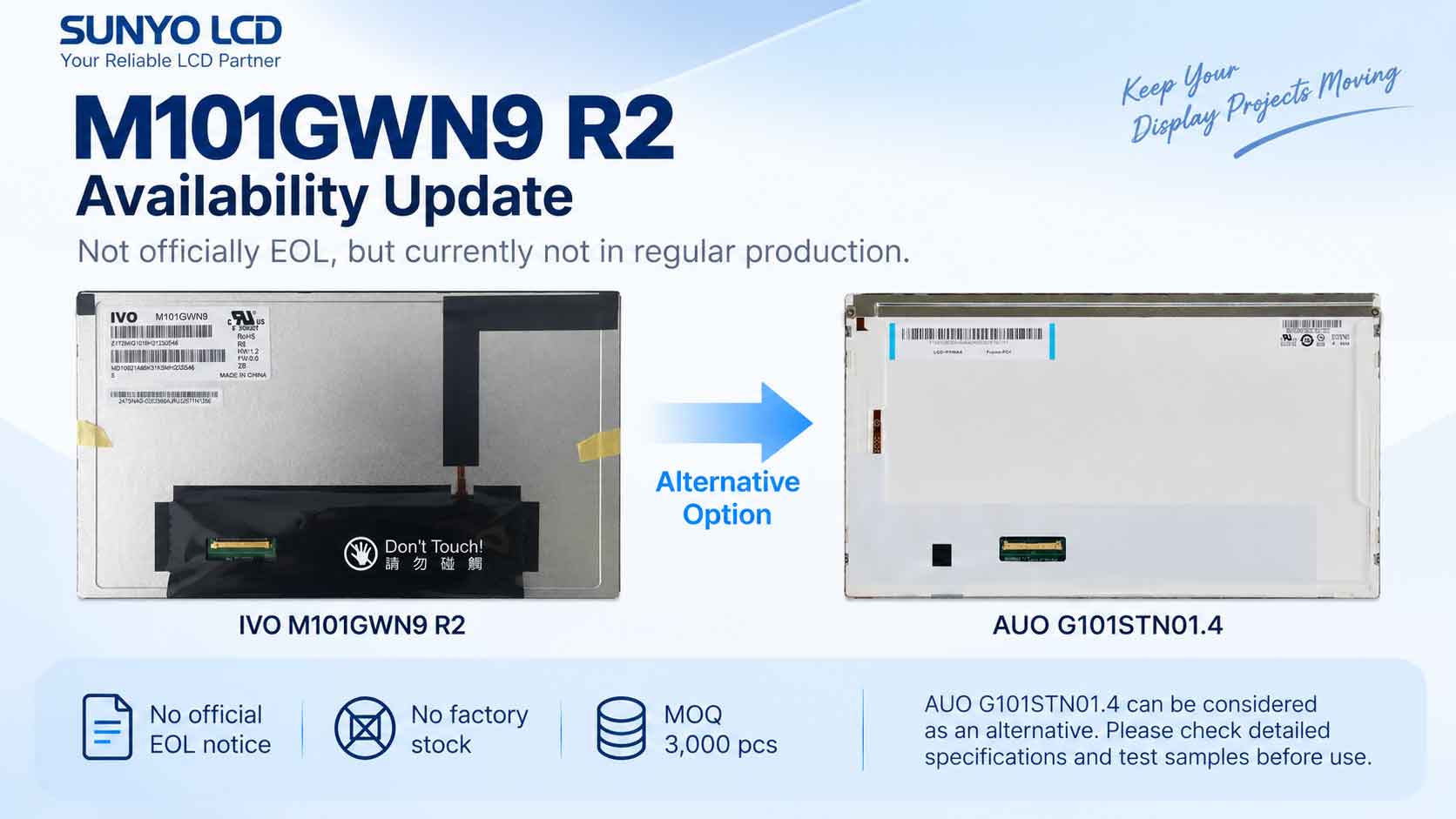

For customers who cannot meet the IVO MOQ, the AUO G101STN01.4 can be considered as a potential alternative.
Both models share several basic specifications:
| Specification | IVO M101GWN9 R2 | AUO G101STN01.4 |
|---|---|---|
| Size | 10.1" | 10.1" |
| Resolution | 1024 × 600 | 1024 × 600 |
| Brightness | 350 cd/m² | 350 cd/m² |
| Interface | LVDS | LVDS |
| Connector | 40-pin | 40-pin |
| Contrast Ratio | 500:1 | 500:1 |
However, G101STN01.4 is not a drop-in 1:1 replacement.
There are differences between the two models, including operating temperature, mechanical thickness, viewing angle, color performance, backlight lifetime and interface pin definition.
Therefore, the G101STN01.4 should be evaluated based on the specific application before replacement.
Can G101STN01.4 Replace M101GWN9 R2?
Potentially yes, but compatibility must be verified first.
For existing equipment using M101GWN9 R2, we recommend checking:
- Mechanical dimensions and installation space
- LVDS interface and pin assignment
- Power requirements
- Operating temperature
- Viewing angle
- Backlight and lifetime requirements
- Display color performance
Sample testing is recommended before mass production.
Need Help With M101GWN9 R2 Replacement?
SUNYO LCD supplies original industrial TFT LCD displays from IVO, AUO, Innolux and Tianma.
If you are currently using M101GWN9 R2 and need an alternative due to availability or MOQ requirements, please send us your application requirements or LCD specifications.
We can help evaluate whether G101STN01.4 or another industrial LCD model is suitable for your project.
Contact: mina@sunyolcd.com
SUNYO LCD – Industrial TFT LCD Display Supplier
